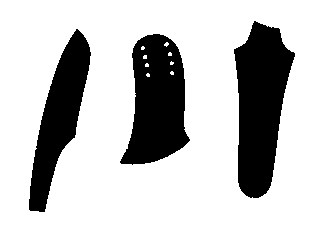

Paper stencil Scan

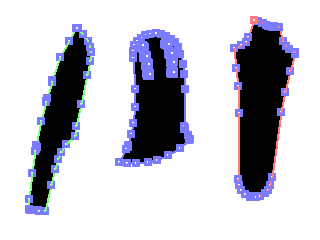

After scanning the paper stencil, the outline is raster-vector converted and registered in the component database.

After loading	Immediately after contour conversion

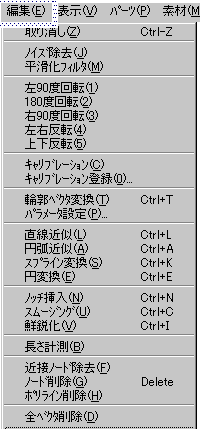

The editing functions for vector conversion are as follows. You can also hide functions that users don't use much.

Full set menu	Subset menu 90% are shipped with this menu.

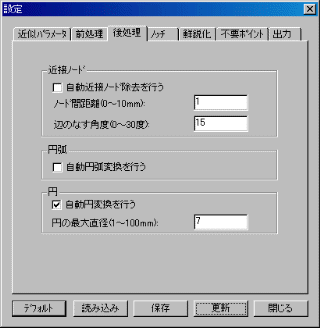

The parameters for vector conversion are as follows.

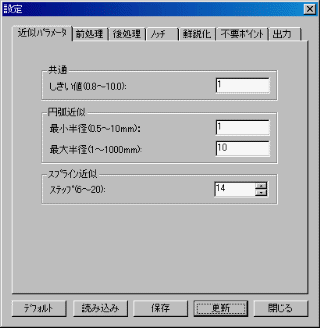

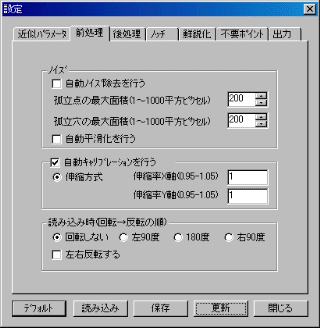

Parameter that determines conversion precision	Parameter that determines processing at image reading

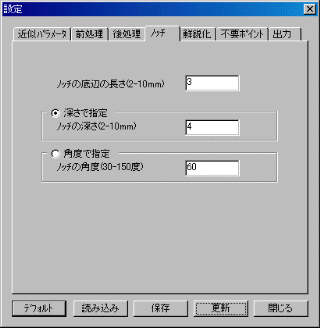

Arc conversion, circle conversion, etc.	Notch conversion Generate notches based on notch width and height

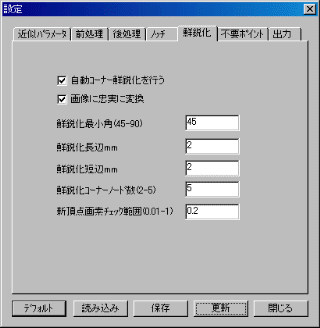

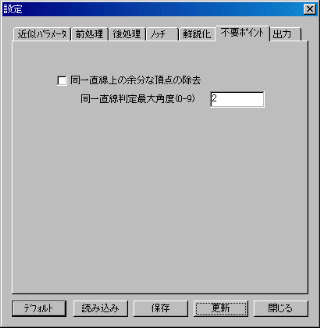

Settings related to sharpening corners	Settings related to removing unnecessary vertices on straight lines

If there are different settings for each application, they can be set in the "Output" tab.
